Inside View

(1) scanning unit / cover

Scans originals. Also, lift and open it to replace an ink tank, to check the ink lamp, or to remove jammed paper inside the printer.

(2) ink lamps

Lights or flashes to indicate the ink tank status.

• Checking the Ink Status with the Ink Lamps

(3) print head holder

The print head is pre-installed.

Note

• For details on replacing an ink tank, see Replacing Ink Tanks.

Bottom Side

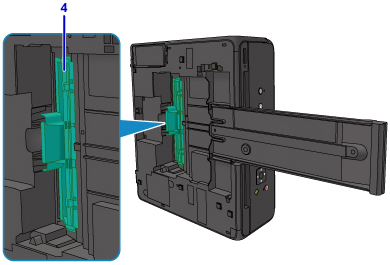

(4) bottom cover

Open when removing jammed paper.
